Latest Marvell Blog Articles
-
December 19, 2024
Custom, Copper and Cross-Country Connectivity: Eight Big Trends for Marvell in 2024
By Michael Kanellos, Head of Influencer Relations, Marvell
What happened in semis and accelerated infrastructure in 2024? Here is the recap:
1. Custom Controls the Future
Until relatively recently, computing performance was achieved by increasing transistor density à la Moore’s Law. In the future, it will be achieved through innovative design, and many of those innovative design ideas will come to market first—and mostly— through custom processors tailored to use cases, software environments and performance goals thanks to a convergence of unusual and unstoppable forces1 that quietly began years ago.

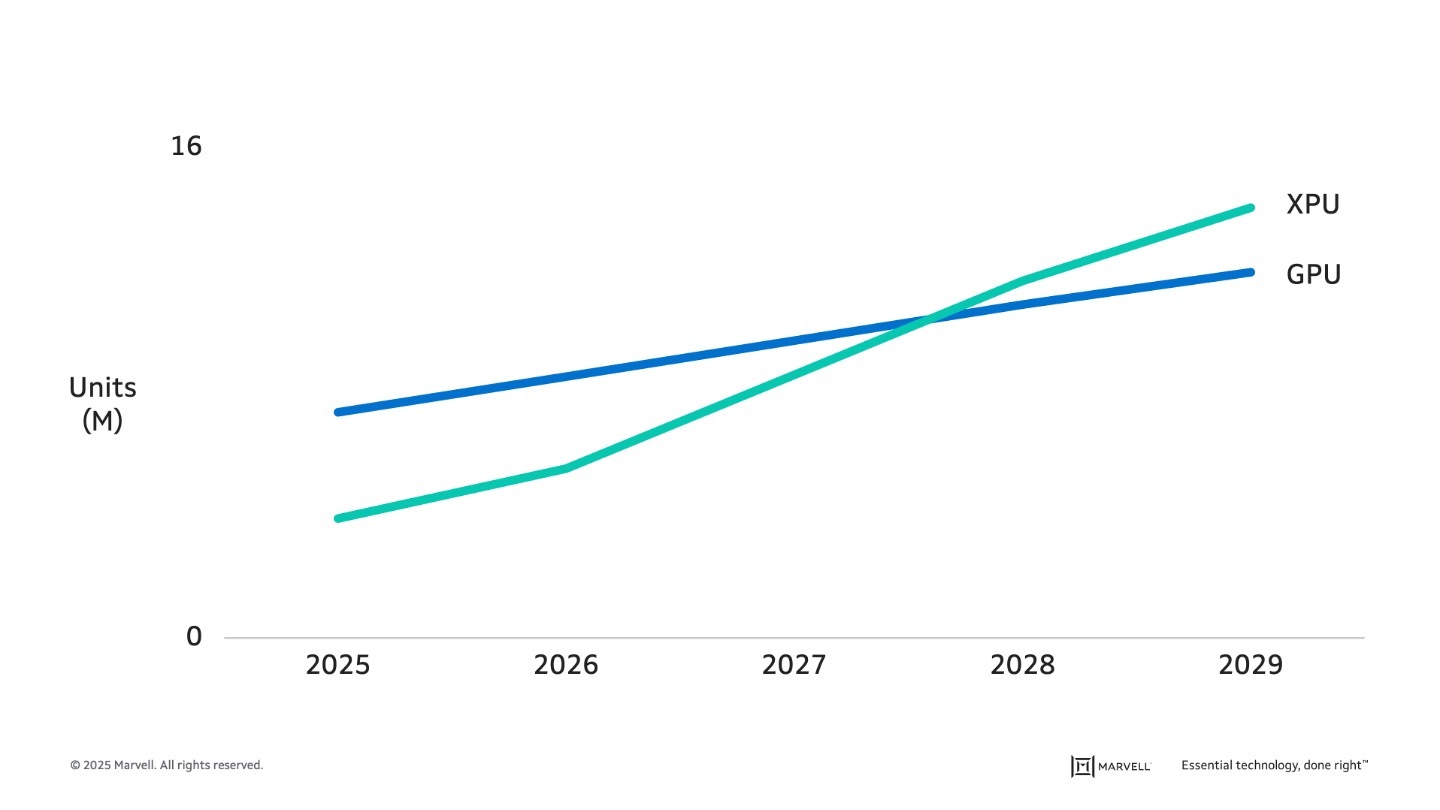

- At Marvell AI Day, we announced that custom processors would represent 25% of the AI accelerator market by 2028 and exceed $42 billion. We also announced we had secured four designs with three of the major hyperscalers.
- In July, we unveiled StructeraTM A and Structera X,2 CXL controllers for near memory compute and increasing memory capacity, respectively. Merchant and custom versions of the chips were released at the same time, a reverse of the traditional pattern where custom chips might follow merchant ones by a lengthy lag.
- At OCP, Meta showed off FBNIC, a custom network interface developed in collaboration with Marvell to reduce the time needed to resolve network issues.3 Make that four out of four hyperscalers. See the image below.
FB NIC on display at OFC- In December, we announced a five-year collaboration that includes supplying custom AI products and other devices for AWS.4 The collaboration also encompasses performing semiconductor design tasks in the cloud, which promises to reduce the time and cost of creating new chips.
- Finally, we ended the year with an alliance for custom high bandwidth memory with Micron, Samsung Electronics, and SK hynix.5 Custom HBM can reduce chip real estate by up to 25% and increase memory capacity by up to 33%.6 Custom HBM runs against industry orthodoxy,7 writes analyst Joseph Byrne, but it could pay dividends.
-
December 17, 2024
The Rapid Road Ahead for Custom HBM
By Michael Kanellos, Head of Influencer Relations, Marvell
The idea of customizing high bandwidth memory (HBM) has only recently emerged, but expect to see it in the mainstream in just a few years.
“We strongly believe that custom HBM will be the majority portion of the market towards the ’27-28 time frame,” said In Dong Kim, vice president of product planning at Samsung Semiconductor in a video interview with the Six Five at Marvell Analyst Day earlier this month where Marvell, Micron Technology, Samsung and SK hynix announced a collaboration to accelerate the development of custom HBM solutions.
Sunny Kang, vice president of DRAM technology at SK Hynix had a similar outlook. “Usually in the DRAM industry, when we launch a new product, it takes just one or two years to be mainstream,” he said. “That means along the ‘29 timeframe, it is going to be a mainstream product in the HBM market. I’m pretty sure about that.”
-
December 11, 2024
O-Band Optics: A New Market for Optimizing the Cloud
By Michael Kanellos, Head of Influencer Relations, Marvell
Data infrastructure needs more: more capacity, speed, efficiency, bandwidth and, ultimately, more data centers. The number of data centers owned by the top four cloud operators has grown by 73% since 20201, while total worldwide data center capacity is expected to double to 79 megawatts (MW) in the near future2.
Aquila, the industry’s first O-band coherent DSP, marks a new chapter in optical technology. O-band optics lower the power consumption and complexity of optical modules for links ranging from two to 20 kilometers. O-band modules are longer in reach than PAM4-based optical modules used inside data centers and shorter than C-band and L-band coherent modules. They provide users with an optimized solution for the growing number of data center campuses emerging to manage the expected AI data traffic.
Take a deep dive into our O-band technology with Xi Wang’s blog, O-Band Coherent, An Idea Whose Time is (Nearly) Here, originally published in March, below:
O-Band Coherent: An Idea Whose Time Is (Nearly) Here
By Xi Wang, Vice President of Product Marketing of Optical Connectivity, MarvellOver the last 20 years, data rates for optical technology have climbed 1000x while power per bit has declined by 100x, a stunning trajectory that in many ways paved the way for the cloud, mobile Internet and streaming media.
AI represents the next inflection point in bandwidth demand. Servers powered by AI accelerators and GPUs have far greater bandwidth needs than typical cloud servers: seven high-end GPUs alone can max out a switch that ordinarily can handle 500 cloud two-processor servers. Just as important, demand for AI services, and higher-value AI services such as medical imaging or predictive maintenance, will further drive the need for more bandwidth. The AI market alone is expected to reach $407 billion by 2027.
-
December 10, 2024
Custom HBM: What Is It and Why It’s the Future
By Michael Kanellos, Head of Influencer Relations, Marvell
How do you get more data to the processor faster?
That has been the central question for computing architects and chip designers since the dawn of the computer age. And it’s taken on even greater urgency with AI. The greater amount of data a processor can access, the more accurate and nuanced the answers will be from the algorithm. Adding more memory, however, can also add cost, latency, and power.
Marvell has pioneered an architecture for custom high-bandwidth memory (HBM) solutions for AI accelerators (XPUs) and will collaborate with Samsung, Micron and SK hynix to bring tailored memory solutions to market. (See comments from Micron, Samsung, SK hynix and Marvell here in the release.)
Customizing the HBM element of XPUs can, among other benefits, increase the amount of memory inside XPUs by 33%, reduce the power consumed by the memory I/O interfaces by over 70%, and free up to 25% of silicon area to add more compute logic, depending on the XPU design1.
The shift—part of the overall trend toward custom XPUs--will have a fundamental and far-reaching impact on the performance, power consumption and design of XPUs. Invented in 2013, HBM consists of vertical stacks of high-speed DRAM sitting on a chip called the HBM base die that controls the I/O interfaces and manages the system. The base die and DRAM chips are connected by metal bumps.
Vertical stacking has effectively allowed chip designers to increase the amount of memory close to the processor for better performance. A scant few years ago, cutting-edge accelerators contained 80GB of HBM2. Next year, the high-water mark will reach 288GB.
Still, the desire for more memory will continue, putting pressure on designers to economize on space, power and cost. HBM currently can account for 25% of the available real estate inside an XPU and 40% of the total cost3. HBM4, the current cutting-edge standard, features an I/O that consists of 32 64-bit channels - an immense size that is already making some aspects of chip packaging extremely complex.
All About Optimizing XPU TCO
The Marvell custom HBM compute architecture involves optimizing the base HBM die and its interfaces, currently designed around standards from JEDEC, with solutions uniquely designed to dovetail with the design, characteristics and performance objectives of the host AI compute die.
Imagine that a hyperscaler wants an AI inference XPU for edge data centers squeezed into dense business districts or urban corridors. Cost and power consumption will be at a premium while absolute compute performance will likely be less important. A custom HBM solution might involve reducing the size of the AI compute die to economize on chip size and power above other considerations.
At the other end of the spectrum, an HBM subsystem for XPUs powering a massive AI training cluster might be tuned for capacity and high bandwidth. In this situation, the emphasis could be on reducing the size of the I/O interface. Reducing I/O size creates space for more interfaces on the so-called beachfront at the side of a chip and hence, boosting total bandwidth.
-
November 12, 2024
2006: The Twelve Months That Changed the Chip Industry
By Michael Kanellos, Head of Influencer Relations, Marvell
The semiconductor market is vastly different than it was a few years ago. Cloud service providers want custom silicon and collaborating with partners on designs. Chiplets and 3D devices, long discussed in the future tense, are a growing sector of the market. Moore’s Law? It’s still alive, but manufacturers and designers are following it by different means than simply shrinking transistors.
And by sheer coincidence, many of the forces propelling these changes happened in the same year: 2006.
The Magic of Scaling Slows.
While Moore’s Law has slowed, it is still alive; semiconductor companies continue to be able to shrink the size of transistors at a somewhat predictable cadence.
The benefits, however, changed. With so-called “Dennard Scaling,” chip designers could increase clock speed, reduce power—or both—with transistor shrinks. In practical terms, it meant that PC makers, phone designers and software developers could plan on a steady stream of hardware advances.
Dennard Scaling effectively stopped in 20061. New technologies for keeping the hamster wheel spinning needed to be found, and fast.
